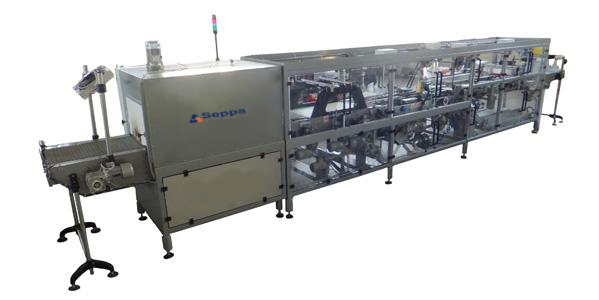

This is our own designed and built fully automatic high speed sleeve wrapper range, ideal for high volume commercial shrink wrap applications.
We have worked hard on the re-design of this machine and are delighted with the results achieved. It looks great, its performance is better than ever, the pack presentation is fantastic, it’s more compact and takes up a relatively small space and to top it all off, much improved energy efficiency.
Features
• Our machines can shrink wrap at speeds up to 35 packs per minute
• Shrink wrap machines are available in sealing widths from 500 mm wide – 1800 mm wide
• Two sealing variants are available our fixed head (stop start) and moving head (continuous motion) sleeve sealing system, where more speed is needed
• For an even faster speed (up to 35 packs per minute) we have our progressive twin belt infeed machine
• The shrink wrap machines utilize a pneumatically controlled hot knife film cutting and sealing system, Improved longevity of the sealing bar
• Our packaging machinery is rigidly constructed from welded steel box section with CNC machined components
• Shrink wrap machines are fully guarded to CE standards including safety interlocked clear view doors
• Twin shrink film reel system
• PLC controlled
• Utilises a HMI touch screen for operation and machine control
• Designed with the engineer in mind, easy access for maintenance and clear view doors enhance visibility for the operator
• For use with Polyethylene shrink film – minimum 13 micron
• The shrink tunnel is thermostatically controlled and recycles air
• Roller track or wire mesh conveyor
• Base mounted turbo heater fans recycle and reuses air
• Super energy efficient shrink tunnel with thick insulation and double sets of silicone curtains at the entrance and exit to retain heat and maintain efficiency
• British designed and built in house in Poole
Options
• Automatic film feed out onto seal bed, aids side pack closure
• Push button control
• Fixed head, moving head and progressive infeed options depending on speed required
• Side seal system
• Side entry infeed
• Stainless steel fabrication and panels for food and dairy applications
• Collating system – designed to suit your product
• Range of infeed and outfeed conveyors to suit product
• Low film indicator
• Oversized film rolls can be incorporated
• Additional film roll cradles
• Fire extinguisher insertion points on the heat tunnel
• Film splicing unit
• Manual handling systems for large film rolls
• Pack rollers on tunnel exit
• Free standing control cabinet
• Service Contract
Our British built shrink wrap machines are fully supported by us in terms of service and supply of consumable spare parts.
Benefits
• SEPPA shrink wrap machine is a result of years of our experience in the industry and our collaboration with our customers and their engineers.
• Robust and reliable this machinery will last for many years in a heavy duty usage application
• SEPPA Shrinkwrap Machinery gives 49 years of knowledge which goes into the build of each machine, you can be assured of back up and service second to none.
• We operate in a continuous improvement environment and are open to work closely with our clients on all aspects of the design and build of each machine.

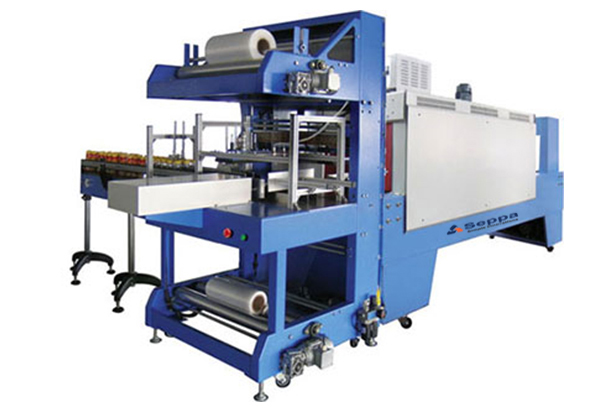

This is a compact SEPPA Monobloc sleeve wrapping system offering the following two options and ideal for medium volume shrink wrap applications;
Semi Automatic
shrink wrap machine with push button control. This sleeve wrapper uses a pneumatically operated pusher with a thrust length of 320 mm and requires a single operator for use.
Automatic
shrink wrap machine with automatic sensor control. This sleeve wrapper uses a motor driven inline infeed conveyor with a length of 400mm. Horizontal sensors are used for product detection and conveyor activation.
Generic Features
• Shrink wraps at a speed up to 12 packs per minute
• The machines uses a twin reel shrink film system
• Bottom and top driven shrink film unwinder (available on the automatic only)
• Electronically controlled Teflon coated hot cutting & sealing bar
• The equipment uses digital display for shrink wrap machines controls
• The heat shrink tunnel has a zinc coated wire mesh conveyor although other options are available
• The heat tunnel conveyor is inverter driven with variable speed control of between 2 and 5 metres per minute
• Thermostatically controlled tunnel, recycles air. Thick silicone curtains at either end of the tunnel reduce heat loss and improve efficiency.
• For use with Polyethylene shrink film
• CE standard
Options
• Bottom and top driven film unwinder (semi automatic)
• Pack rollers on tunnel outlet which assist in flattening the molten film on exit from the heat tunnel. This improves pack closure and overall presentation and finish.
• After pack cooler to remove some of the heat from the surface of the pack, which is useful if the pack is to be manually handled
• 10/15mm roller tunnel conveyor
• Teflon lining of tunnel conveyor
• Stainless steel conveyor
• Conveyor extension on tunnel outlet
• Pack stabiliser for use with unstable goods
• Side entry version available where packs can be collated and wrapped prior to shrinking, please call for more details

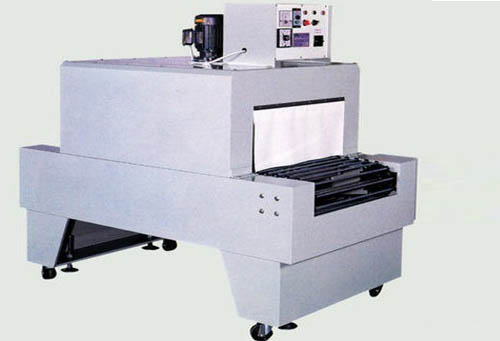

This is a compact SEPPA Monobloc sleeve wrapper, ideal for low volume shrink wrapping applications where a Polythene film is required. The machine places a sleeve of film around the pack which then passes through to the heat tunnel for shrinking..
Generic Features
• The machine is manually operated and can produce between 120 and 350 packs per hour
• Requires single operator to shrink wrap packs
• The machine utilizes a twin reel shrink film system. One reel at the top and one at the bottom.
• Electronically controlled Teflon coated hot cutting & sealing bar
• The machine has digital control displays
• The shrink tunnel uses a zinc coated wire mesh conveyor, although roller conveyor can be an option is required
• The tunnel conveyor belt is inverter driven with variable speed control of 2-5 metres per minute
• Thermostatically controlled tunnel, recycles air. The tunnel has thick silicone curtains at either end which reduces heat loss and improves the energy usage of the tunnel.
• For use with Polyethylene shrink film
• The operation of the machine sealing blade involves two handed control for operator safety
• CE standard
Options
• Bottom and top driven shrink wrap film un-winder which is ideal for light packs
• Pack rollers on tunnel outlet which assist in flattening the molten film against the pack to aid pack closure and a better presentation and finish
• After pack cooler to take some of the heat out of the pack once the shrink has finished
• 10/15mm roller tunnel conveyor
• Teflon coating of tunnel conveyor
• Stainless steel conveyor
• Conveyor extension on tunnel outlet
• Pack stabilizer to assist wrapping and transporting unstable packs through the machine
